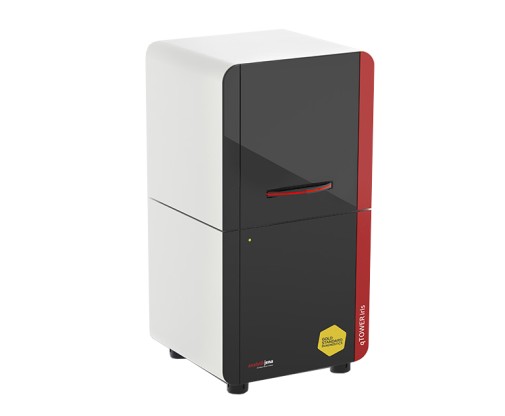

GSD Real-Time PCR Thermal Cycler

The GSD real-time PCR thermal cycler offers high precision, rapid cycle times, and the capability to analyze numerous samples at once.

With qPCR, the DNA amplification process can be measured in real time, enabling precise calculation of the starting concentration of a sample. This advantage makes qPCR a perfect fit for applications such as detecting pathogens in the food industry.

The GSD cycler is validated to use with our BACGene GO real-time qPCR assays, for pathogen detection in a broad range of food samples:

BACGene GO Salmonella

Log in to see price
Details

The GSD real-time PCR thermal cycler offers high precision, rapid cycle times, and the capability to analyze numerous samples at once.


Precision

  • The target temperature is reached precisely and quickly (high ramping rate)
  • Temperature accuracy: ± 0.15 degrees Celsius (market standard: up to ± 0.4 degrees Celsius)
  • Gold-coated silver sample block providing top conductivity
  • Homogeneous temperature distribution across the entire block
  • Prevents false amplification

Multiplexing

  • Multiplexing with the qTOWERiris allows for six targets in one go
  • Complete spectrum: clear signals from UV-A to Near Infrared (NIR)
  • Compatibility with current and future dyes on the market

Sample Block Capacity Silver sample block with gold coating
96 wells suitable for 0.1 mL and 0.2 mL
format consumables with optical sealing
Sample Volume 5 – 100 µL
Heating Max. 8 °C/s and Ø 7 °C/s
Cooling Max. 5.5 °C/s and Ø 4.5 °C/s
Temperature setting range 4 °C to 99 °C
Temperature uniformity ± 0.15 °C at 55 °C (after 15 s)
Temperature control accuracy ± 0.1 °C
Gradient 0.1 °C – 40 °C over 12 columns
Linear Gradient Tool
Light source 7-chip long-life power LED
Optical detection Highly sensitive PMT (Photo Multiplier Tube)
Excitation/detection range 440 nm – 670 nm / 505 nm – 730 nm
Incl. color module 7 (UV-A): 360 – 670 nm / 460 nm – 730 nm
Multiplex capacity Up to 6 targets, no passive reference necessary
Filter configurations Flexible filter configuration: 6 positions in the device
Sensitivity Detects 1 copy of target sequence
Dynamic range 10 orders of magnitude
Control and analysis software PC- or touchscreen-based version
Connectivity USB, Ethernet
Footprint (W/D/H) 30.4 cm x 31.5 cm x 58.7 cm (12”x 12.4”x 23.1”)

Kit Specifications
SKU
HU0060911
