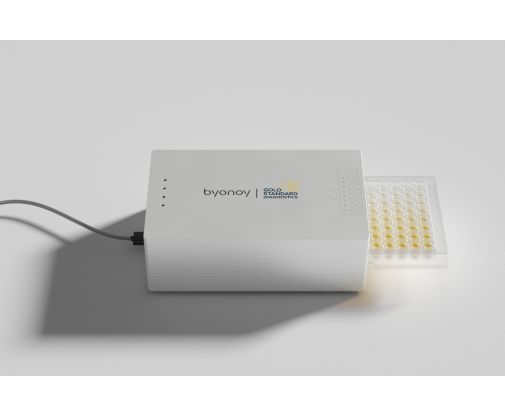

GSD ABSORBANCE 96 ELISA READER

Compact microplate reader for 96-well assays, compatible with our ELISA plates: take the lab into your hands!

The footprint of the GSD Absorbance 96 is almost as small as the microplate itself, thereby fitting into every lab, saving valuable bench space and providing unprecedented flexibility.



Contact us

Details

The most compact ELISA reader on the market

GSD Absorbance 96 is a new category of plate readers with the mission to simplify the workflow in the laboratory. The small size of the reader, in combination with the unique open design, leads to an entirely new user experience. A simple USB connection provides both the power supply and access to the analysis software via plug-and-play.



Key Benefits


- Highly robust with small footprint

- Delivers precise and accurate results

- Easy transportation and flexibility

- 7x smaller than the smallest comparable reader

- Maintenance-free user experience

- 96 individual detection units enabling simultaneous signal detection

- Extremely fast photometric measurements

- Variety of available wavelength combinations

- No license fee for software use

Product Information


Detection method

Absorbance

Detection mode

Endpoint, kinetic

Microplates types

96-well microplates

Light source

Up to 4 LEDs

Detector

96 Photodiodes

Wavelength selection

Example combinations (FWHM 10 nm): 450, 492, 562, 620 nm / 405,  450, 540, 630 nm / 492, 562, 605, 650 nm. Other filter combinations in the range of 400–1000 nm possible.

Photometric range

0.0–4.0 OD

Linearity

405 nm: ≤ 1.5 % from 0.0–2.0 OD; ≤ 3.0 % from 2.0–3.0 OD≥ 450 nm: ≤ 1.0 % from 0.0–2.0 OD; ≤ 1.5 % from 2.0–3.0 OD

Accuracy

405 nm: ≤ 1.5 % + 0.010 OD from 0.0–2.0 OD; ≤ 3.0 % + 0.010 OD from 2.0–3.0 OD≥ 450 nm: ≤ 1.0 % + 0.010 OD from 0.0–2.0 OD; ≤ 1.5 % + 0.010 OD from 2.0–3.0 OD

Reproducibility

≤ 0.5 % + 0.005 OD from 0.0–2.0 OD; ≤ 1 % + 0.010 OD from 2.0–3.0 OD

Resolution

0.001 OD

Read time

Dow to 3 sec. at single wavelength

Data output

USB 2.0 interface with PC

Dimensions

9.6 x 15.4 x 5.5 cm (W x L x H)

Weight

900 g

Power supply

USB connection 5 V

Power consumption

2.5 Watts

Operating systems

Microsoft Windows, macOS

Measurement modes

Endpoint, Kinetic

Evaluation methods

Quantitative, Qualitative

Regression methods

Point-to-Point, Linear, Four Parameter Logistic (4PL), Five Parameter Logistic (5PL)

Export formats

PDF, CSV
Kit Specifications
SKU
EIAREAD002
